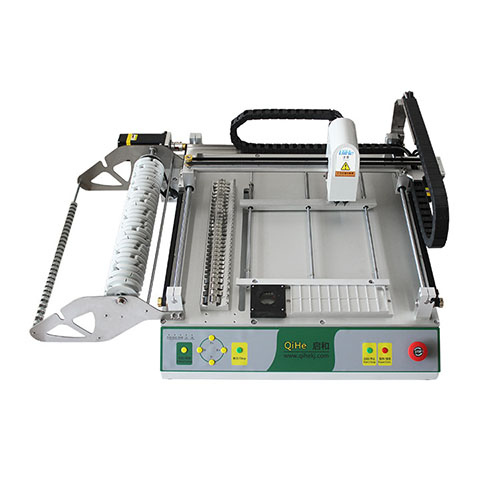

Description
|
Name |

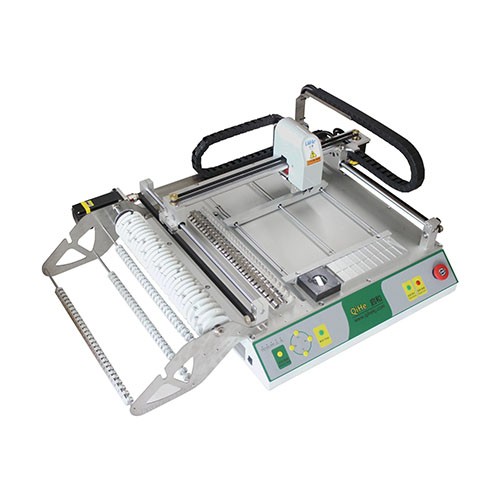

TVM802A |
|
Max applicable PCB |
20*20mm—340*340mm |
|
Max XY Moving area |
395*450mm |
|
Placement head quantity |
2 |
|
Max mounting capability |
6000 PCS/H |
|
Motor control scheme |
stepper motor |
|
Applicable Components |
0402--5050、SOP、TQFP、QFN etc. |
|
Components supply |
Tape reel、bulk、Tray |
|
Tape width & Feeders number |
Total=29, 8mm=25, 12mm=3, 16mm=1 |
|
Visual systems |
2 HD CCD Cameras |
|
Pump |
1 vacuum pump(-92KP), 1 blow pump |
|
Leakage material detection |
Vacuum |
|
Power |
125W |
|
Power Supply |
AC220V or AC110V |
|
Machine weight |
39kg |
|
Gross weight |
67kg |
|
Packing size |
105*76*45cm |
|
Volume |
0.37CBM |
|
Support software |
Protl99/Altium Designer/Eagle/Pads/ Allegro |

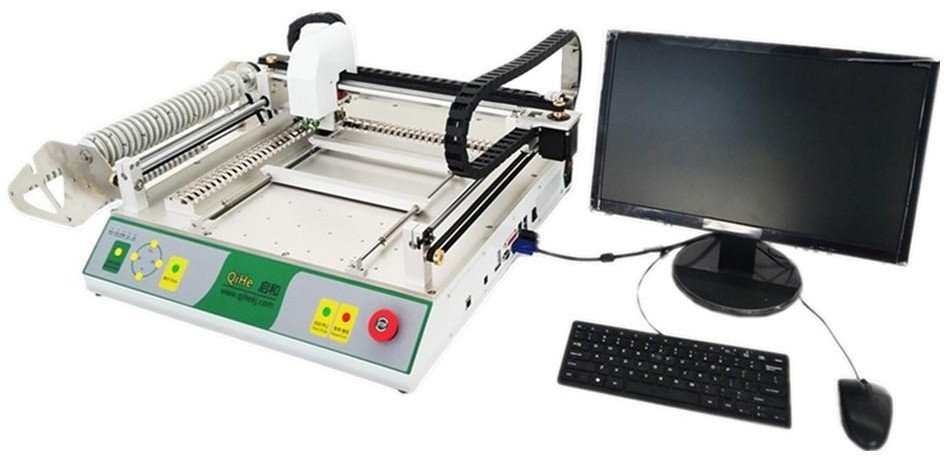

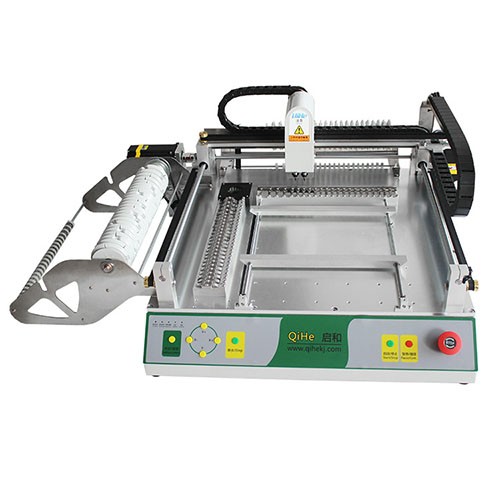

Product detail info:

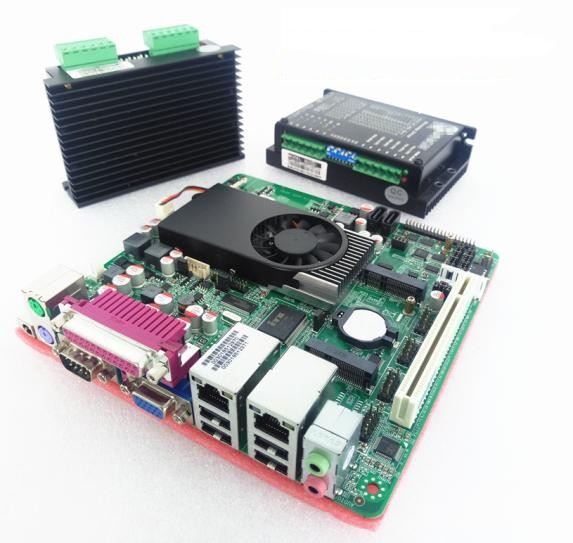

1. Built-in industrial computer, built-in 80V high-voltage motor driver, chip more stable and reliable, more convenient to use.
2. New x-axis upgrade to square rail, more precise mounting , more efficient movement.

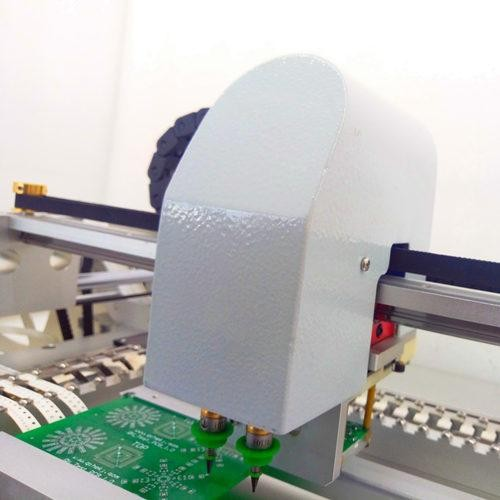

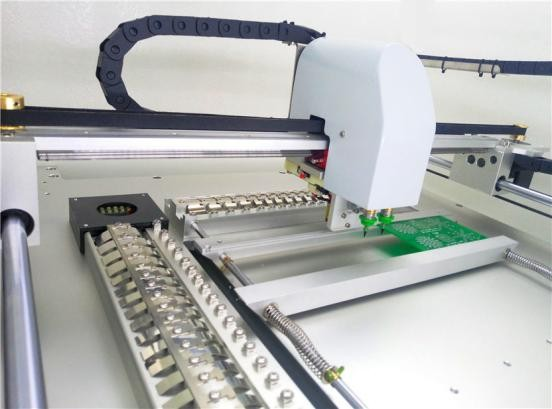

3.Intelligent Assembly head design, any angle assembly, material shortage detection, automatic feeding.

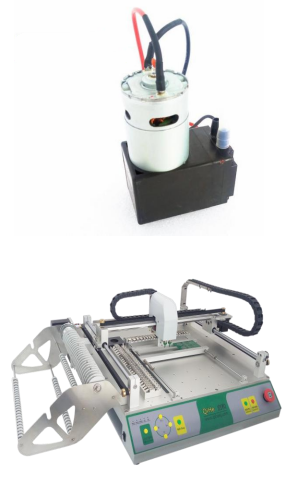

4.Built-in quiet type vacuum pump, suction, quiet effect is good, stable and reliable.

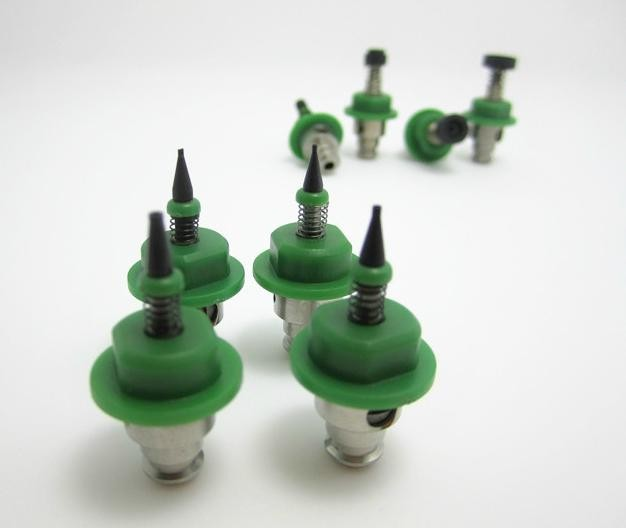

5.International Common Suction Nozzle, equipment late maintenance is simple, save trouble.

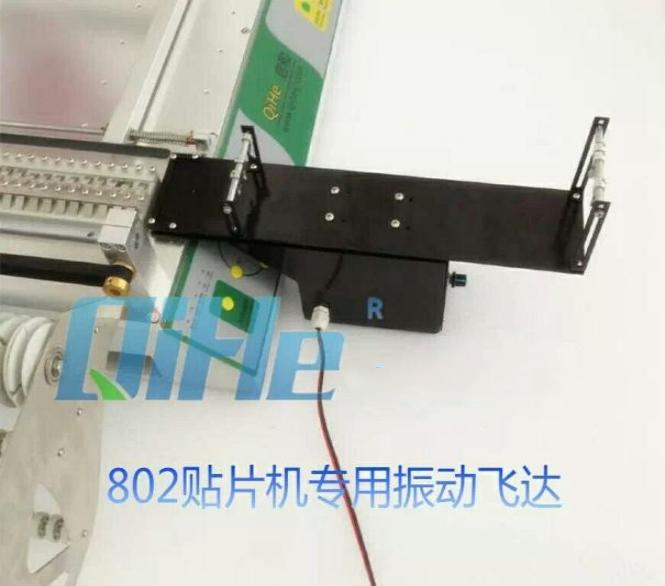

6.Special Vibration Feida (optional) , can support all kinds of pipe loading parts.
7. Equipped with 18-grid, scientific distribution of the practical front slot, some of the bulk materials can be easily solved.

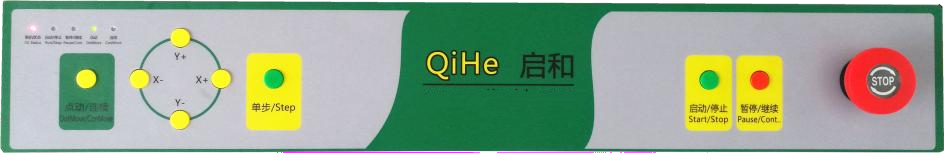

8. Carefully designed humanized control panel, care about every step of your operation!

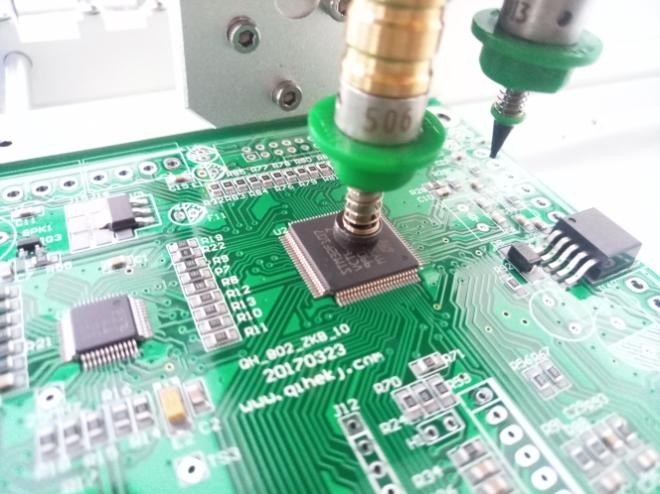

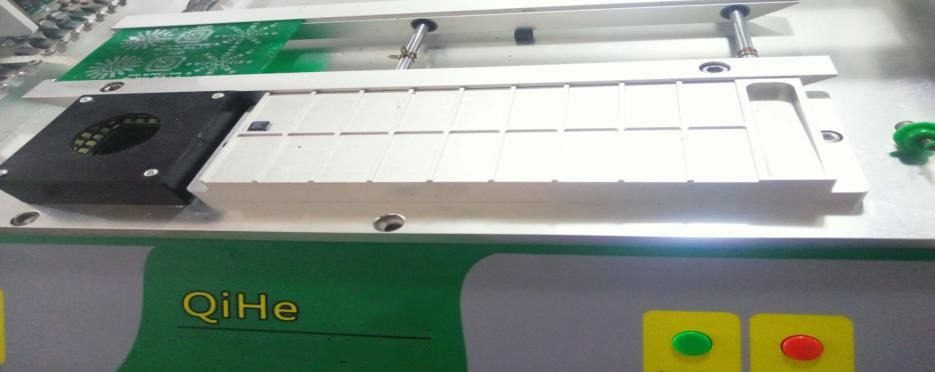

10. Mature and stable up-and-down vision function (automatic mark recognition, support device auto-alignment function, can accurately identify, 0402,0603,0805, Sop, TQFP, QFN, BGA and almost all conventional devices

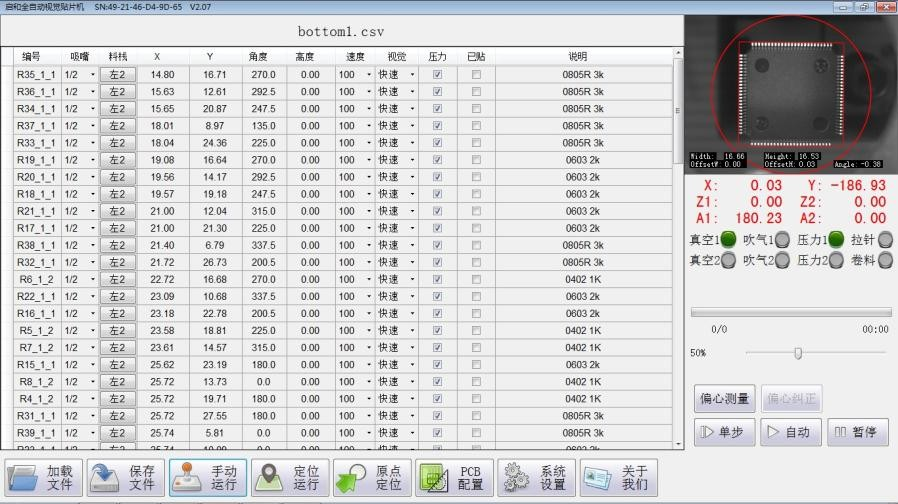

11. Independent Research and development, the domestic top control software, support the world all kinds of mainstream PCB design software.
1)Self-developed control software, easy to operate, enjoy life-long free upgrade services
2)Support global mainstream PCB design software, coordinate batch import.
3)Automatic mark point recognition, automatic recognition of arbitrary graphics, fast and accurate
4)PCB Assembly function
5)Vacuum detection of material shortage function, automatic feeding
6)Break point any device began to mount, simple and practical
7)Humanized device online editing function, efficient and accurate
8)AUTOMATIC OPTIMIZATION OF MOUNT FILE, efficient and practical

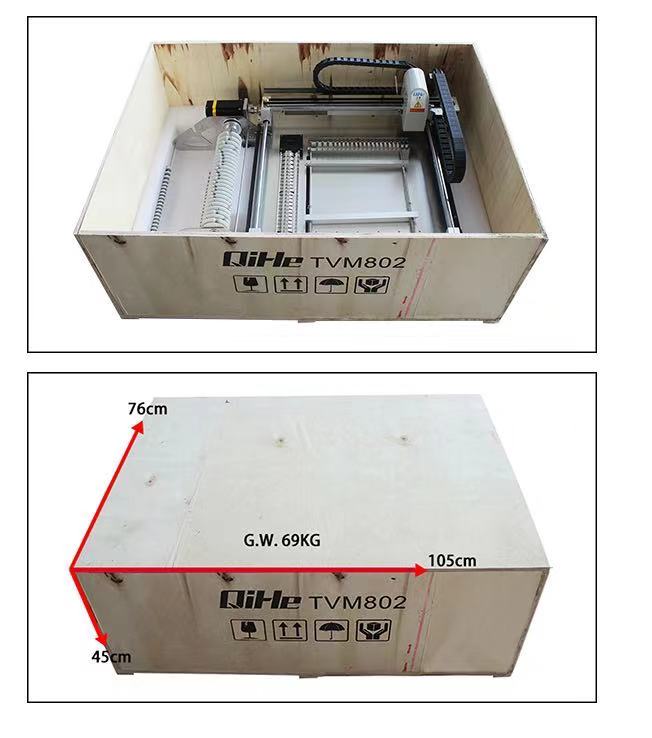

12.About the package
13.This product not only obtains many national patents, but also obtains CE, Rosh and so on international attestation.
