Description

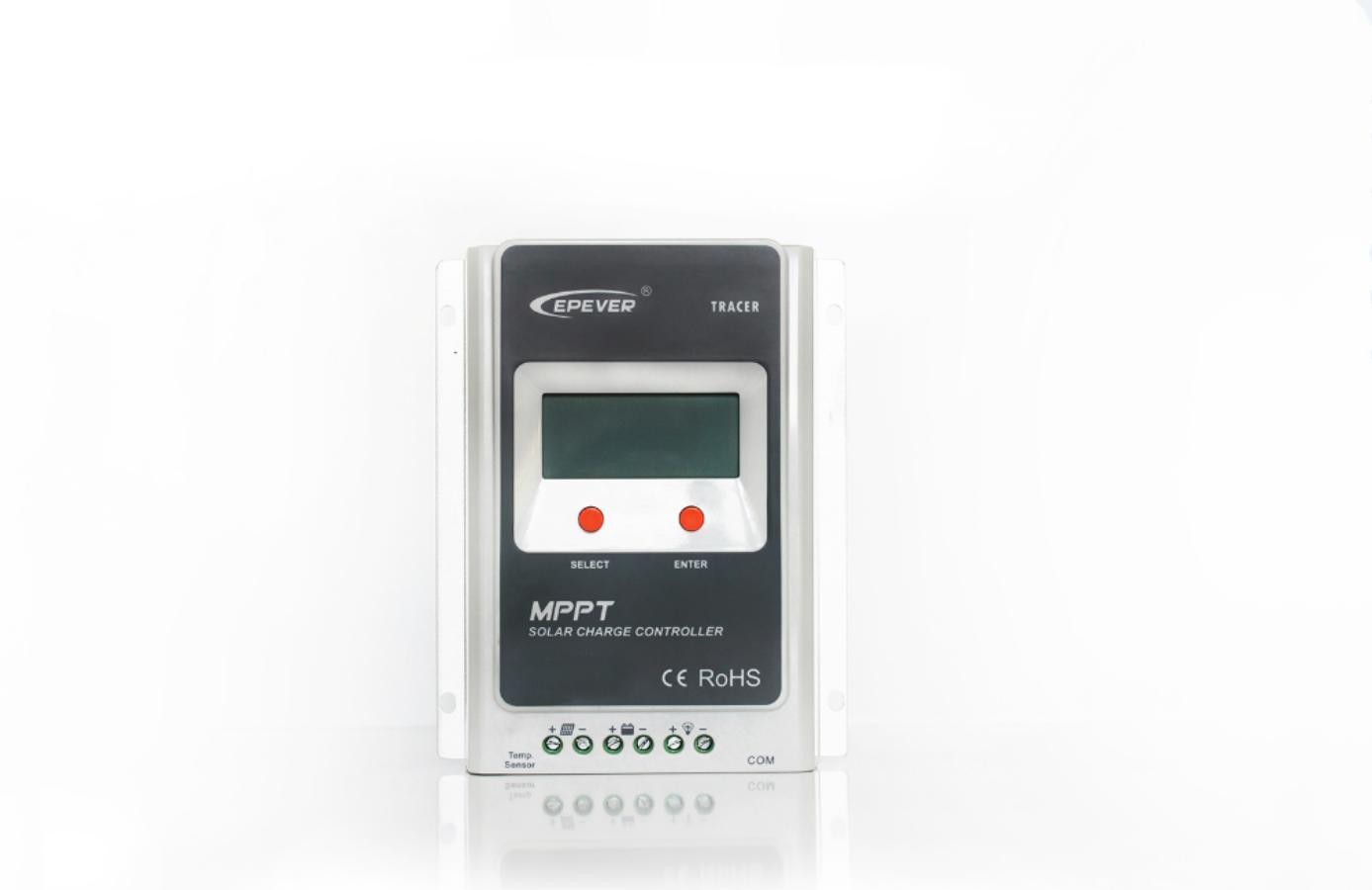

Tracer1210A 10A, 12/24V auto work
Features ：
• Advanced MPPT technology
• High tracking efficiency no less than 99.5%
• Peak conversion efficiency of 98%
• Ultra-fast tracking speed
• Accurately recognizing and tracking MPP of multiple wave crest
• Automatic PV power limit function
• Multi-function LCD displays system information intuitively
• User programmable for battery types, load control etc.
• 3-Stage charge with PWM output
● Common positive grounding design
• RS485 port with industrial standard MODBUS open architecture
• Fully programmable function via remote meter, PC software and Mobile APP.
Electronic protections:
• PV over current protection
• PV short circuit protection
• PV reverse polarity protection
• Battery over voltage protection
• Battery over discharge protection
• Battery reverse polarity protection
• Battery overheating protection
• Load overload protection
• Load short circuit protection
• Controller overheating protection
Load working mode：
1）Manual (default)
2) Light on/off
3）Light on+Timer
4) Time control
5) Test
Operation:
- Several methods for real-time monitoring and parameter setting
- 1. Remote meter, MT50
- 2. PC monitoring setting software “Solar Station Monitor”
- 3. Mobile APP (Android system)
Technical Specifications：
|
Model |
Trancer1210A |
| Nominal system Voltage | 10A |
| Rated charge current | 10A |
| Battery input voltage |
8-32V |
| Max, PV open circuit voltage |
100V ( at minimum operating environment temperature) 92V (at 25℃ environment temperature) |
| MPP voltage range |
VBAT+2V～72V |
| Max.PV input power |
130W(12V) 260W(24V) |
| Equalize charging voltage |
Sealed: 14.6V, Flooded: 14.8V |
| Boost charging voltage |
Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V |
| Float charging voltage |
13.8V |
|
Low voltage reconnecr voltage |
12.6V |
| Low voltage disconnect voltage |
11.1V |
|
Self-consumption |
≤20mA(12V); ≤16mA(24V) |
|
Temperature compensation cosfficient |
-3mV/ ºC/2V |
|
Communication |
RS485(RJ45 interface) |
|
Grounding |
Common positive |
|
Overall dimension |
172*139*44mm |
|
Power terminals |
12AWG(4mm2) |
|
Net weight |
0.6kilos |
|
Enclosure |
IP30 |
|
Working environment temperature |
-25 ºC ～+45 ºC |
|
Relative humidity |
≤95% (N.C.) |
|
|

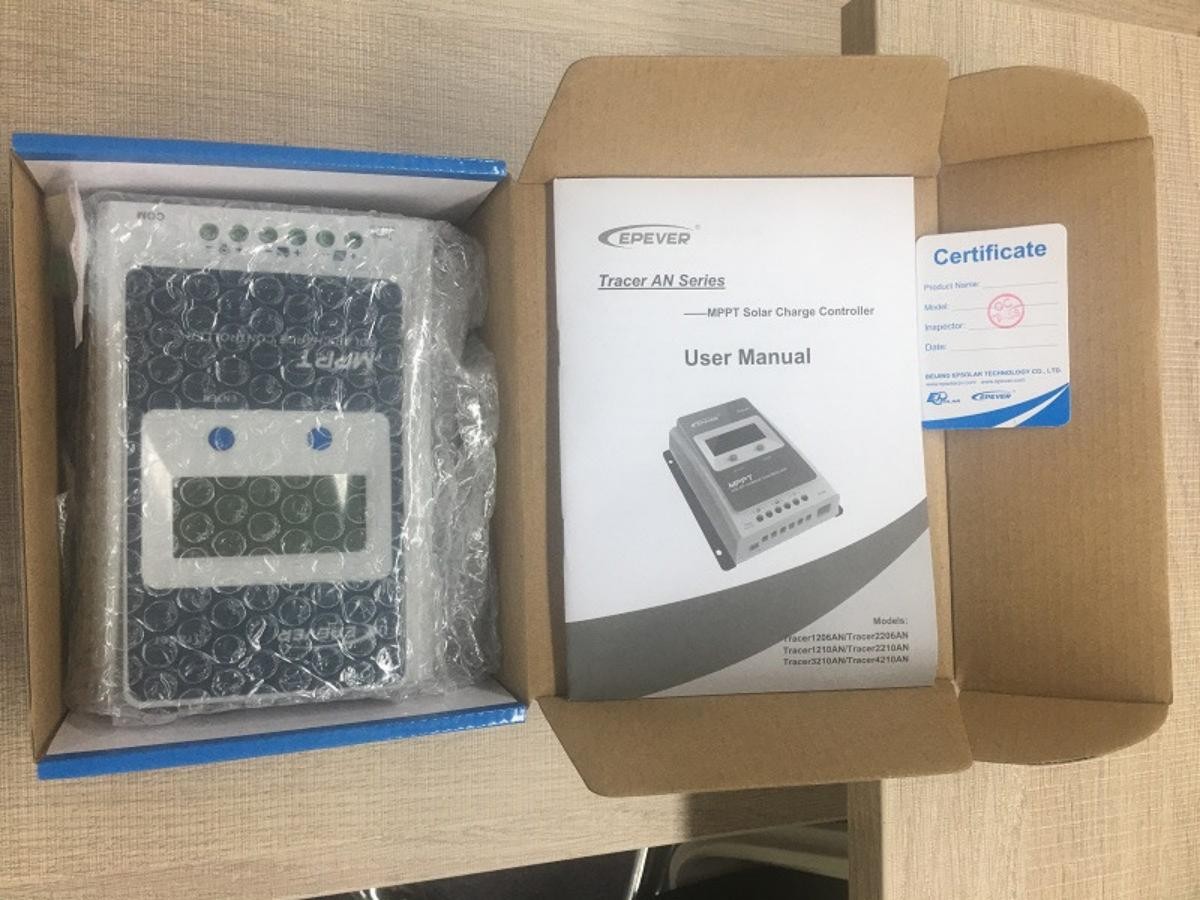

About packing :
